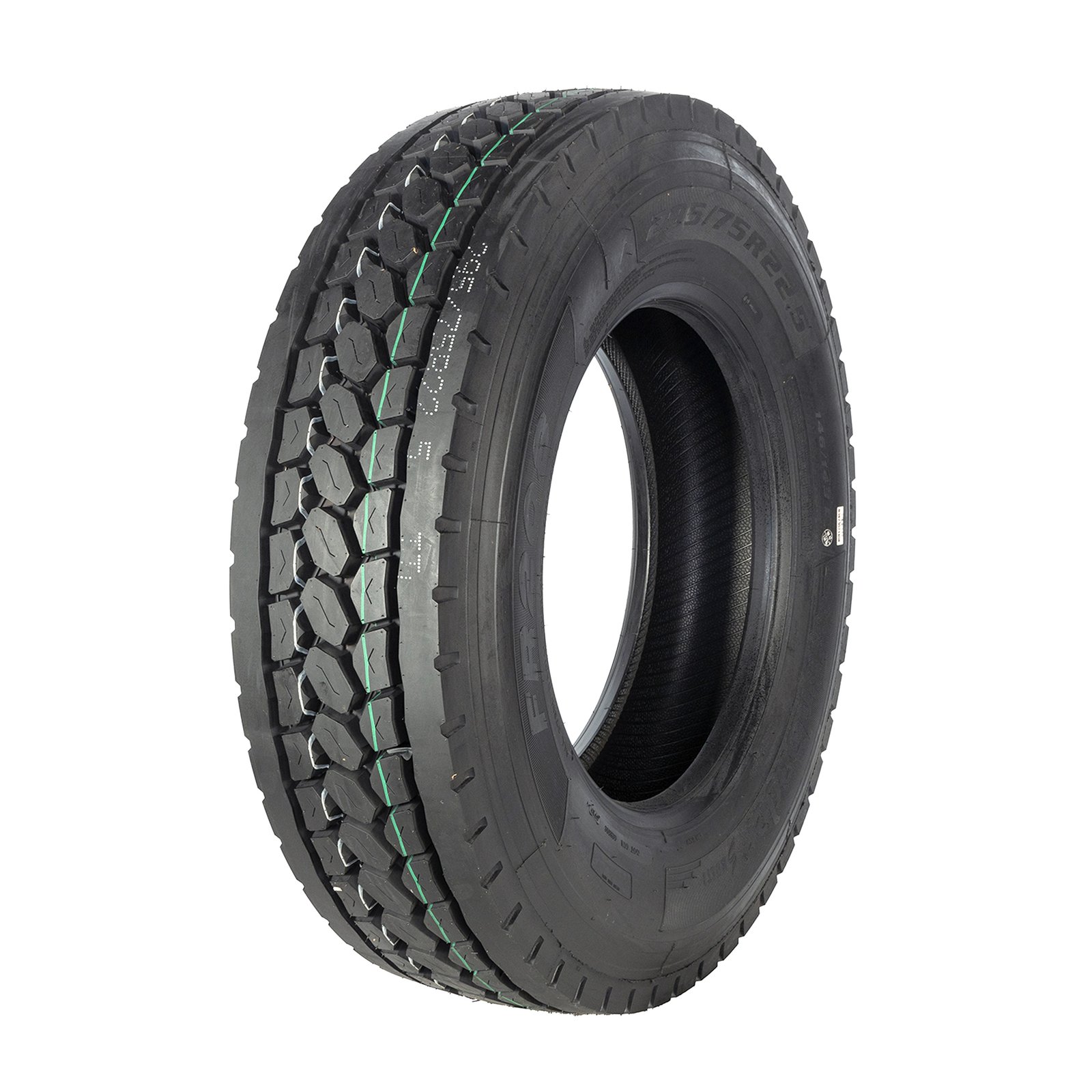

Lotour FR208

Features and Benifits



• Low-rolling-resistance tread

Low-rolling-resistance tread compound minimizes fuel consumption and qualifies it as a SmartWay-verified drive tire.



• Closed shoulder tread

Closed shoulder tread design provides even wear while maintaining excellent traction



• Large tread blocks and closed

Large tread blocks and closed, high-rigidity shoulder reduces the likelihood of early removal due to irregular wear.



• Computer-optimized tread design

Computer-optimized tread design includes deep slits between the tread blocks that provide enhanced wet and dry traction. Pass-thru groove ensure exceptional water evacuation.



Developed for roads, the Lotour FR208 11R22.5 11R24.5 is a drive tire that delivers benefits to your business. The main one is its low rolling resistance, which not only enhances fuel efficiency but also slashes your daily operational costs. Furthermore, its tread boasts a distinctive design and a high-quality rubber compound, ensuring optimal ground contact, balanced wear, and extended tire lifespan. In essence, it’s the resilience your truck desperately needs to stay on the road longer and perform better.



Datasheet



Tire Size:11R22.5                                                         Tire Size:11R24.5

Ply Rating: 16PR                                                           Ply Rating: 16PR

Load Range: M                                                                Load Range: M

Load Index: 146/143                                                    Load Index: 146/143

Tread Depth(MM): 20.5                                                 Tread Depth(MM): 20.5

Tread Width(MM):  210                                                 Tread Width(MM):  210

Tire Weight (KG): 53.00                                                 Tire Weight (KG):56.50

Overall Width (MM): 279                                               Overall Width (MM): 279

Overall Diameter (MM): 1054                                       Overall Diameter (MM):1104

Single Max Load (KG): 3000                                         Single Max Load (KG): 3250

Dual Max Load (KG): 2725                                           Dual Max Load (KG): 3000

Single Inflation(KPA): 850                                            Single Inflation(KPA): 850



Tire Size:295/75R22.5                                                 Tire Size:285/75R24.5

Ply Rating: 16PR                                                           Ply Rating: 16PR

Load Range: L                                                               Load Range:L

Load Index: 146/143                                                    Load Index: 146/143

Tread Depth(MM): 20.6                                                 Tread Depth(MM): 20.6

Tread Width(MM):  220                                                 Tread Width(MM):  216

Tire Weight (KG): 55.64                                                 Tire Weight (KG):57.30

Overall Width (MM): 294                                               Overall Width (MM): 283

Overall Diameter (MM): 1026                                       Overall Diameter (MM):1050

Single Max Load (KG): 3000                                         Single Max Load (KG): 3075

Dual Max Load (KG): 2725                                           Dual Max Load (KG): 2800

Single Inflation(KPA): 830                                            Single Inflation(KPA): 830





Size	PR	Pattern	Standard	Load	Speed Rating	Section width(mm)	Tread Depth(mm)	Load Capacity		TREAD Width(mm)
			Rim	index				Single	Dual
11R22.5	16	FR208	8.25	146/143	M	279	20.5	3000	2725	210
11R24.5	16	FR208	8.25	146/143	M	279	20.5	3250	3000	210
295/75R22.5	18	FR208	8.25	146/143	L	294	20.6	3000	2725	220
285/75R24.5	16	FR208	8.25	146/143	L	283	20.6	3075	2800	216





Tire Cutaway Features



① FUEL-SAVING COMPOUNDS

improves energy efficiency by optimizing the rolling of the tire, thereby enhancing fuel economy.

② STRONGSTEEL-BELT CONSTRUCTION

helps enhance toughness and tire life

③ PROTECTIVE SHOULDER COMPOUND

helps guard the outer tread from accidental curb damage

④ SOLID SHOULDER RIB

provide uniform wear in the shoulder

⑤ PRESSURE DISTRIBUTIONGROOVE

helps promote even wear

⑥ CIRCUMFERENTIAL ANDLATERAL GROOVES

Help deliver all-season traction
